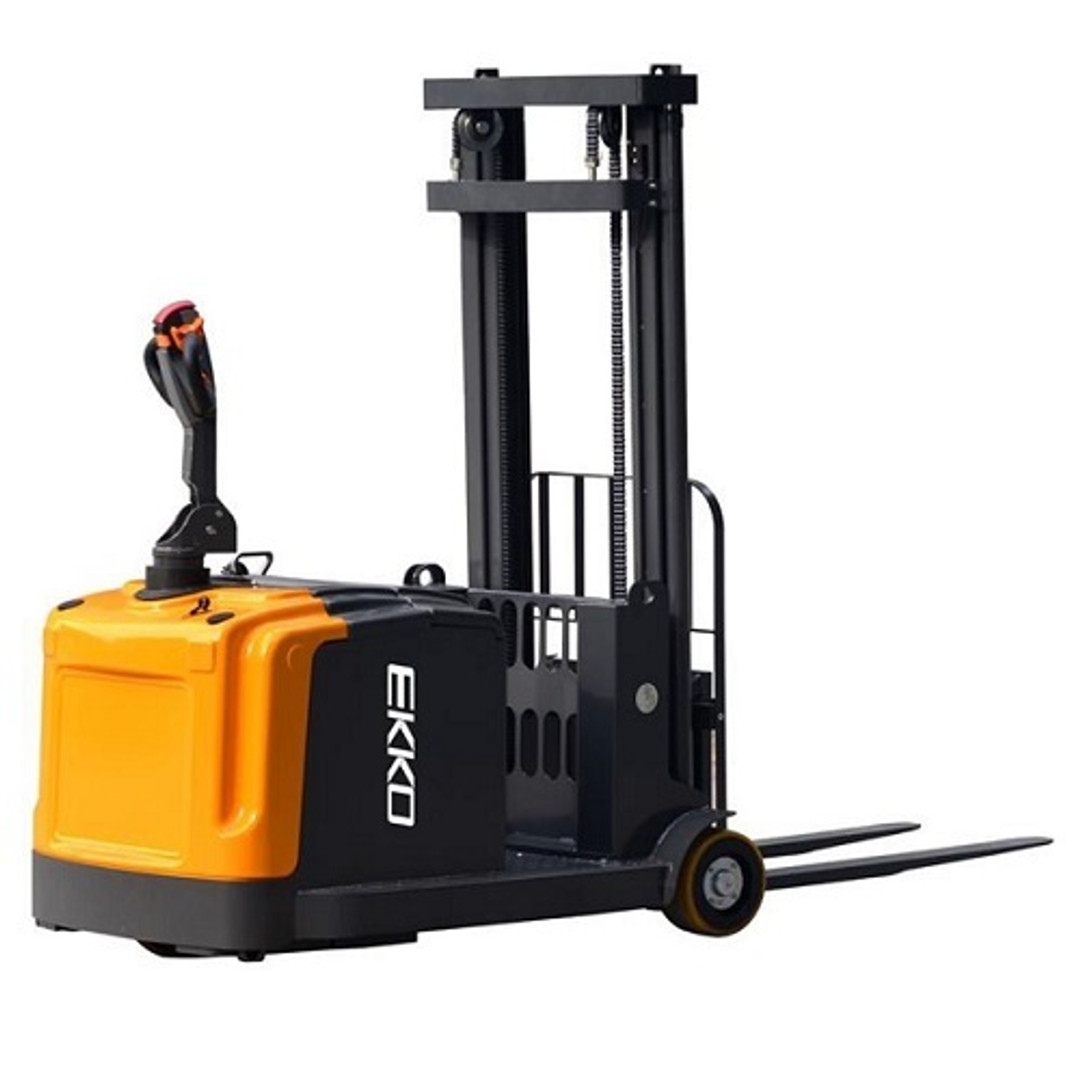

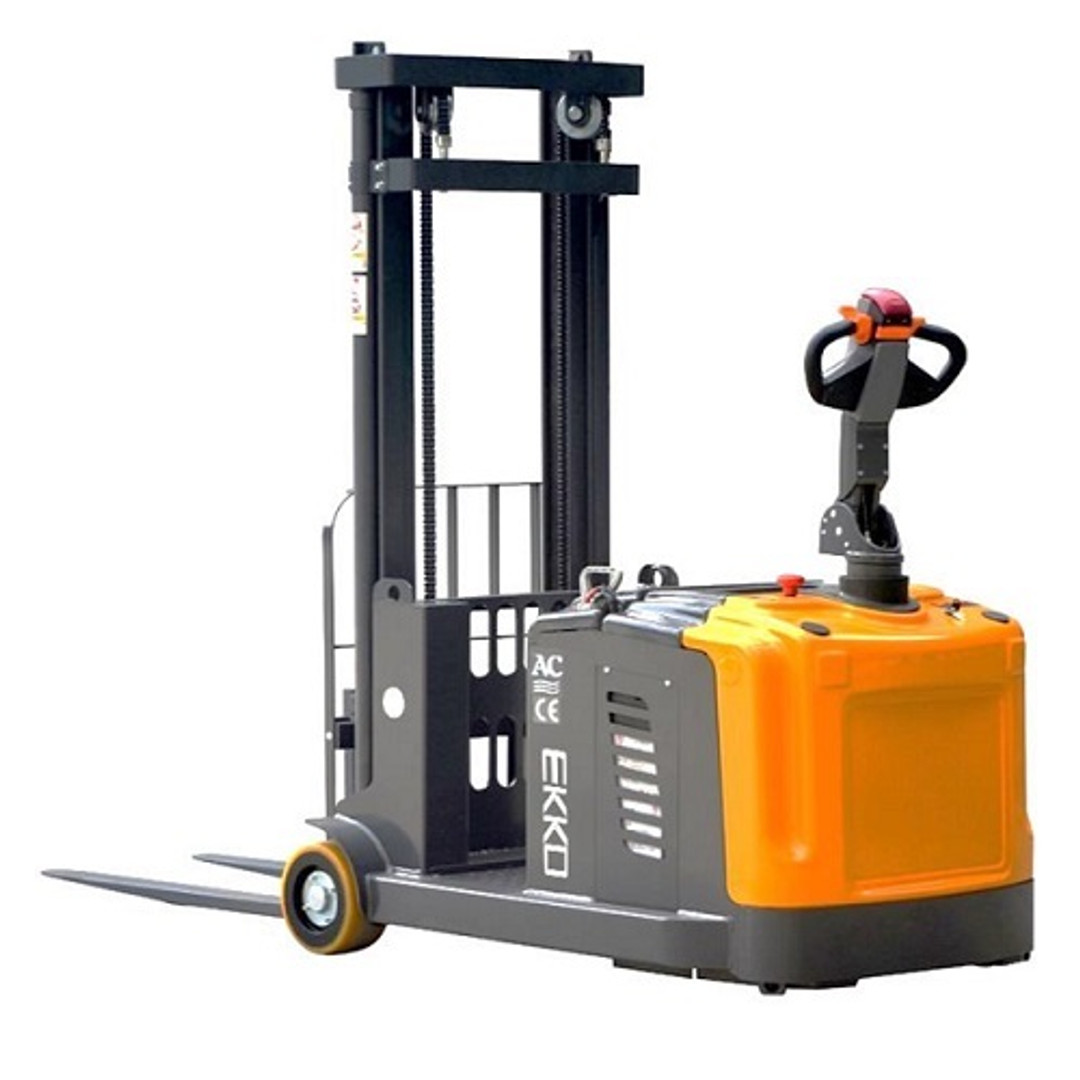

EKKO EK14-138 Counterbalance Walkie Stacker 3300 lbs. Cap., 138″ Lift Height
EKKO EK14-138 Counterbalance Electric Fork Stacker 3300 Capacity features electric-powered drive and lift capable of lifting loads at a height of 138” high. It has a compact design with the combination of the versatility of forklift and a walkie stacker making ideal for all sorts of material handling applications such as loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.

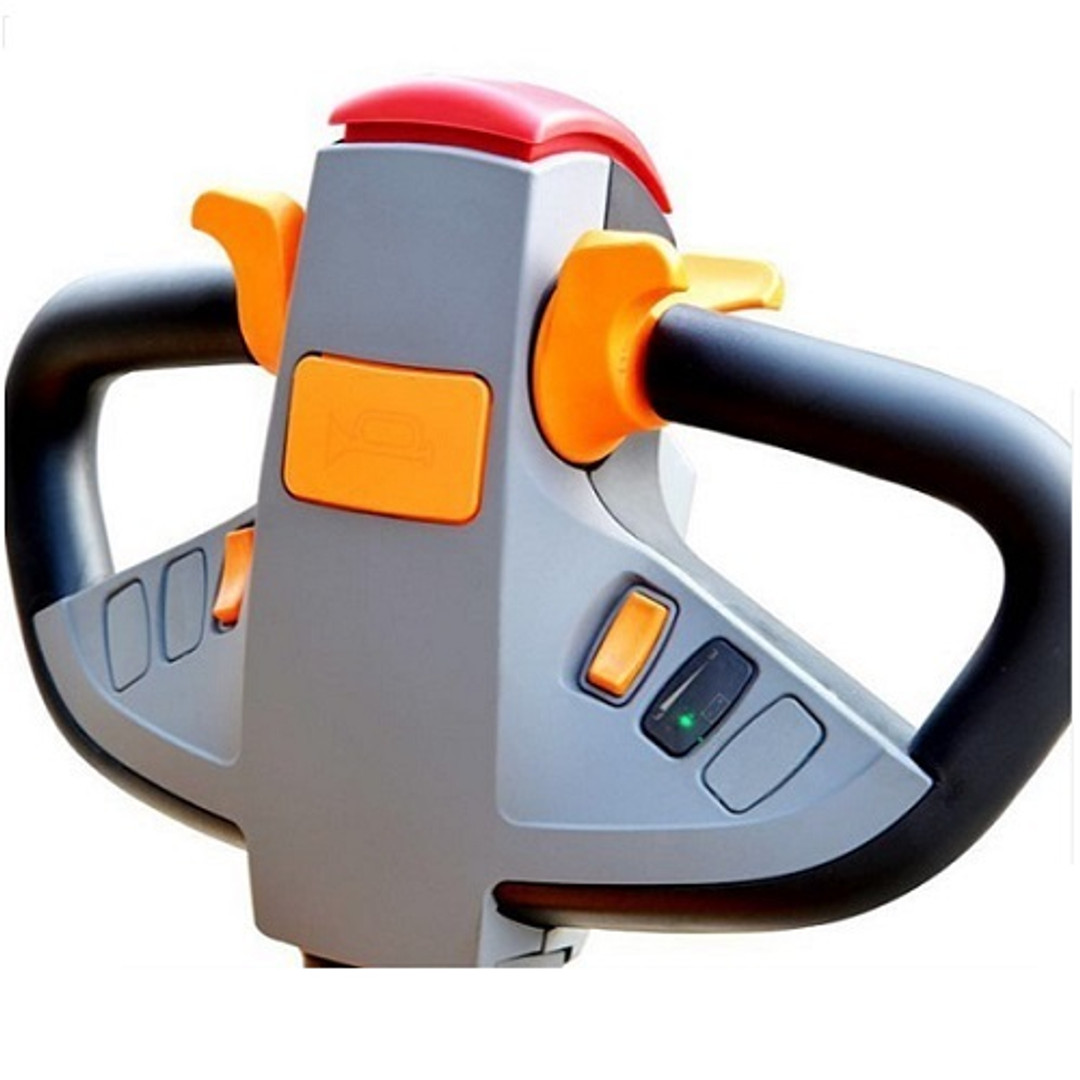

The Counterbalance Electric Lift Truck is equipped with adjustable forks that can go as wide as 28.3” and measures 45.3” long allowing you to deal with a variety of pallets, skids and loads you might have. The unit is conveniently operated using EKKO’s ergonomically designed Curtis Instrument which offers safe and efficient controlling of the Stacker.
It comes standard with heavy duty drive and load Polyurethane wheels which provide excellent maneuverability and stability no matter the material handling task you are working on. The Fully-Electric Stacker includes a large and powerful 24V 210AH battery with a fast charger lasting you a whole day’s worth of work.
This Electric Counterbalance Stacker is composed of quality drives and components guaranteeing long service life and great overall performance even when continuously used. It is made out of industrial-grade steel with powder coating which ensures maximum durability and resilience.
Features:
• SKU: EK14-138
• Load Capacity 3300 lb
• Raised Height 138″ (11.5 ft)
• Adjustable Forks 8.6-28.3″
• Fork Length 45.3″
• Tilt 2/5 Degree
• Curtis Controller
• 24V AC Drive Motor
• 24V Lift Motor
• EPS (Electronic Power Steering)
• Polyurethane Wheels
• Ergonomic Handle and Controls
• Steel Construction
• Robotic Welding
• Charger Included
• Batteries Included
• 3 Years Limited Warranty

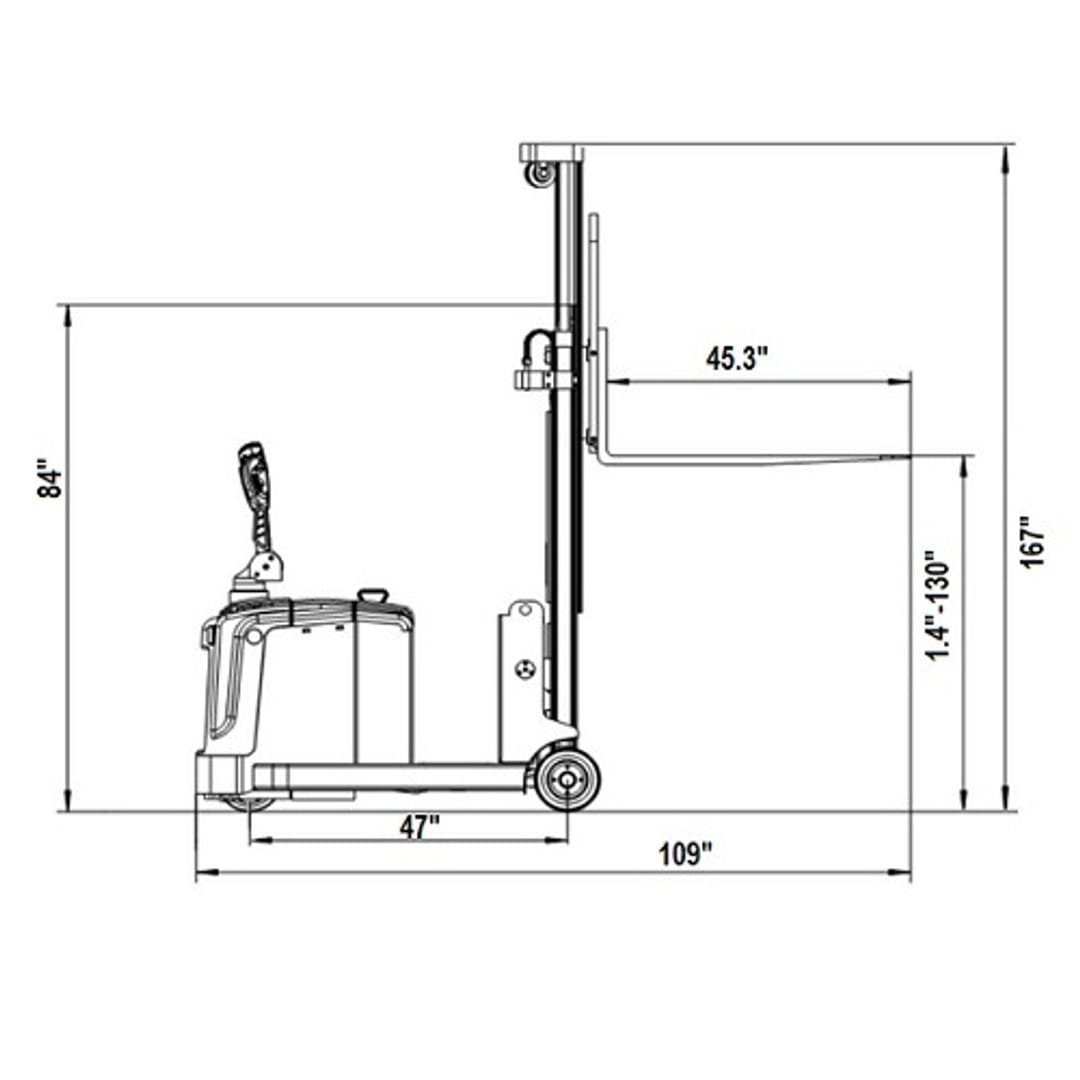

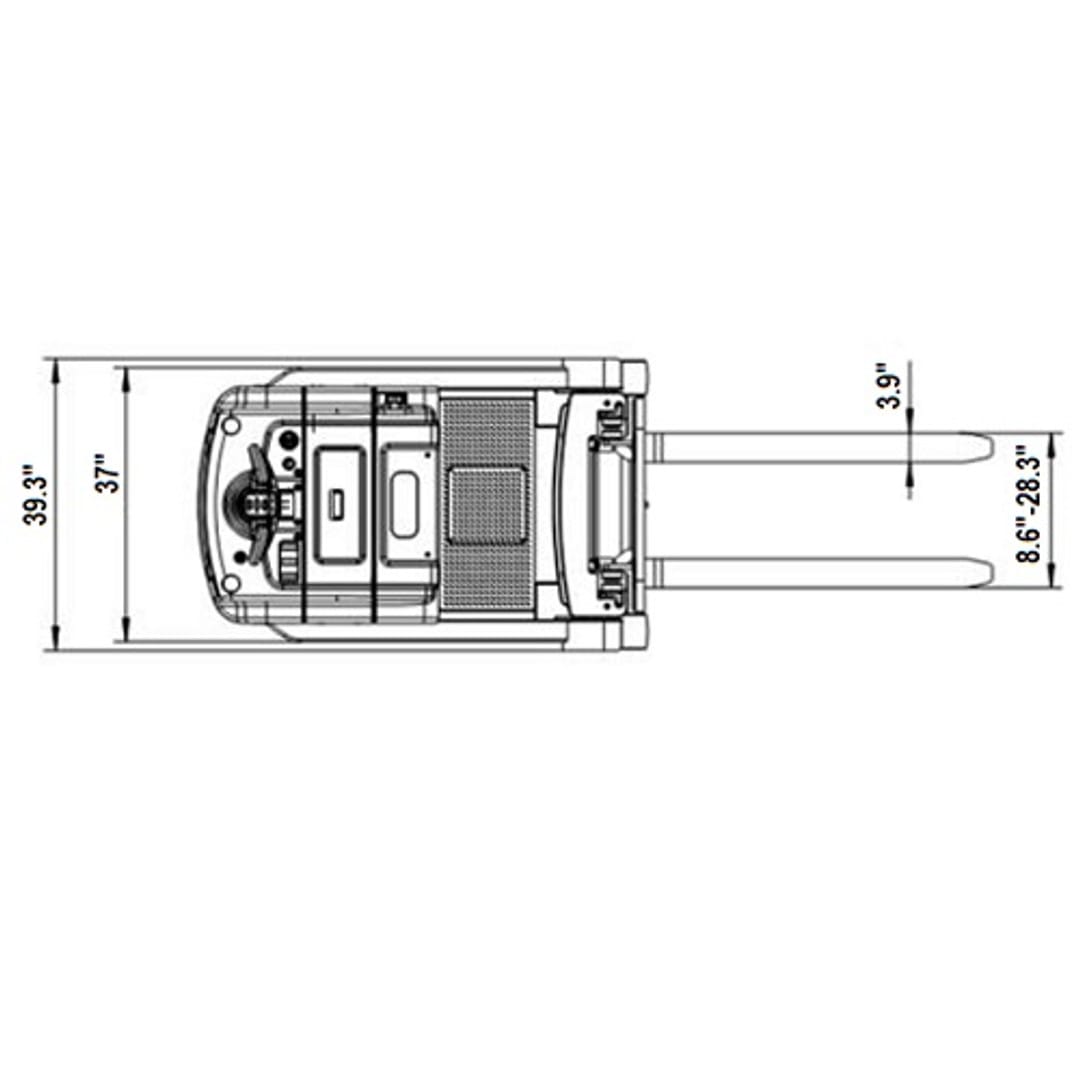

Specifications:
| Model | EK14-138 | |
| Lift | Electric | |
| Drive | Electric | |
| Load capacity | 3300 | |
| Load center distance | (lb) | 24 |
| Wheel base | (in) | 47 |
| Lifting height | (in) | 138 |
| Free lifting height | (in) | 4 |
| Lowered mast height | (in) | 90 |
| Extended mast height | (in) | 155 |
| Mast/Fork carriage tilt forward/backward | (in) | 2/5 |
| Overall length | ( °) | 105 |
| Overall width | (in) | 39 |
| Fork size, Thick/Width/Length | (in) | 1.4/4/37 |
| Fork adjust width | (in) | 8.7-28 |
| Turning radius | (in) | 62 |
| Max.gradient performance, laden/unladen | (in) | 6/10 |
| Lift speed,laden/unladen | (in/s) | 4/5.5 |
| Lowering speed, laden/unladen | (in/s) | 5.3/4.7 |
| Charger | (V/A) | 24V/30A |
| Driving Motor | (V/W) | AC 24V/2500W |
| Lifting Motor | (V/W) | 24V/3000W |
| EPS Steering Motor | (V/W) | 24/200W |
| Battery voltage | (V/Ah) | 24V/210Ah (Side) |
| Service Weight | (lb) | 3880 |
| Weight | 3875 kg |
|---|
