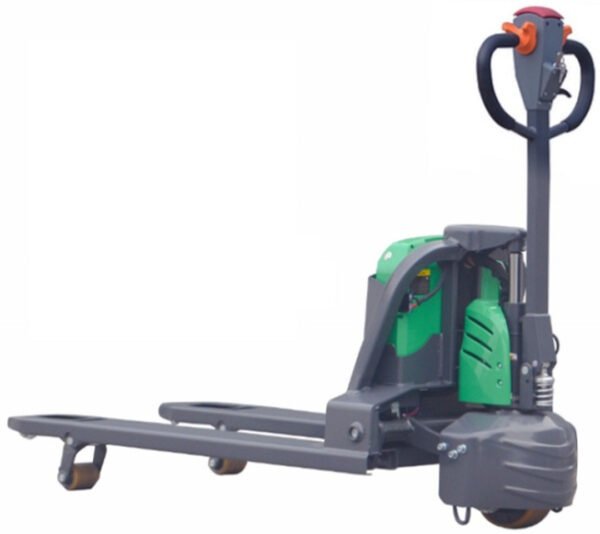

EKKO EP15SLi Lithium-ion Semi-Electric Pallet Truck, 3300 lbs Capacity
EKKO EP15SLi Lithium Iron Phosphate Electric 3300 Capacity Walkie Pallet Jack features electric-powered drive and lift (lowering is done manually by leaning back the handle). It comes standard with a powerful 24V/30Ah Lithium-ion batteries which offer a stable and low-maintenance power source with a longer service life compared to standard batteries in the market today.

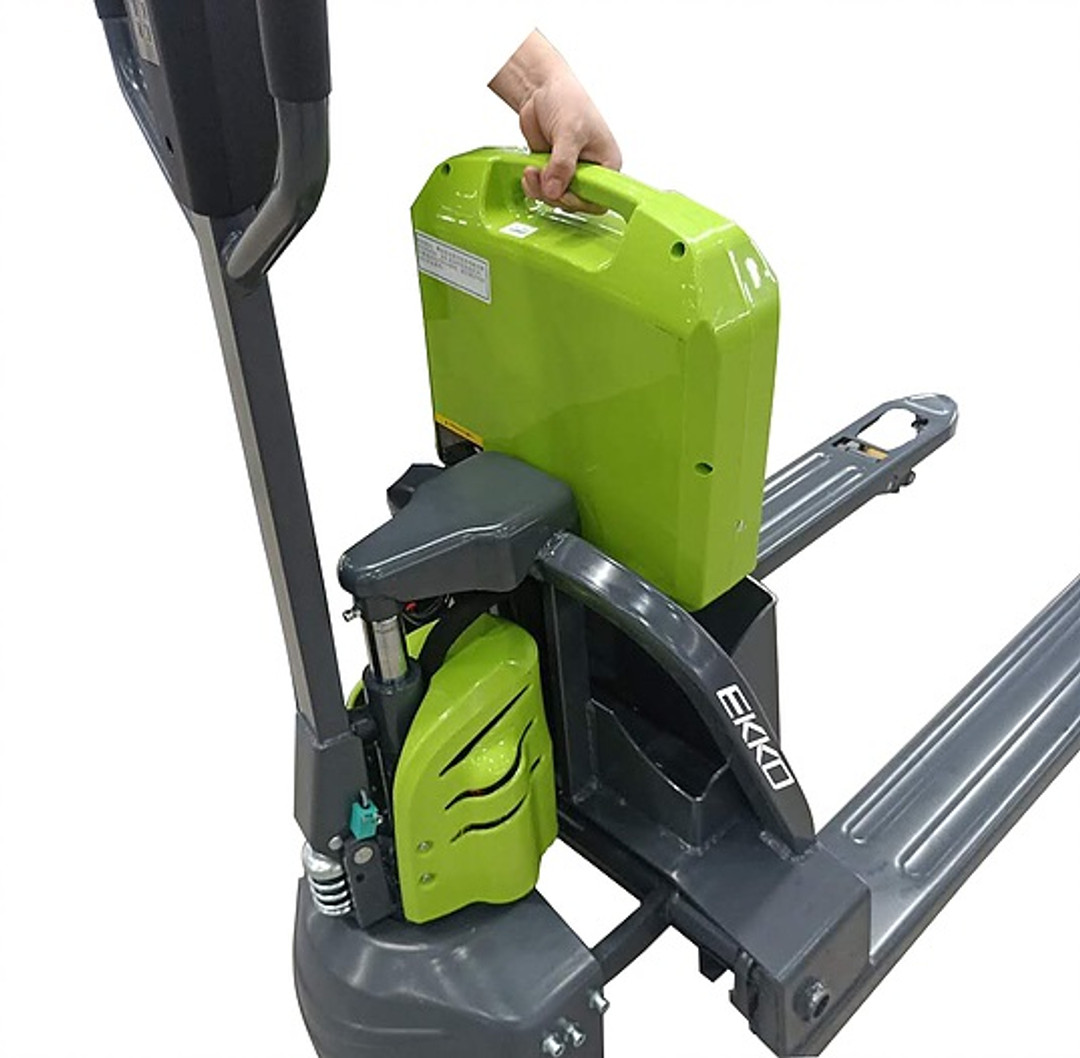

It also includes an external direct connect fast-charger allowing you to use the pallet jack while charging the battery if you choose to get the optional extra battery. It is equipped with durable forks measuring 27″ wide and 48″ long perfect for standard pallets, skids and other cargo you have.
The Electric Pallet Jack also has a compact design with an ergonomic handle allowing convenient and easy operations since all the throttle, lifting, lowering, turtle mode and horn functions are all within arm’s reach. It is made out of heavy duty steel construction robotically welded to ensure maximum strength and durability.
The EKKO Power Drive Walkie Pallet Jack is equipped with resilient cushioned Polyurethane drive and load wheels provide great maneuverability and stability taking you and your loads from point A to B without a problem. It works well for both indoor and outdoor material handling applications.
Features:
• SKU: EP15SLi
• Lithium 24V Powered
• Load Capacity 3300 lb
• Lift Height: 7.87″
• Turning Radius: 57.8″
• Fork Size 27″ x 48″
• Raised Height 7.87″
• Lowered Height 3.35″
• Pinwheel Capability
• Polyurethane Wheels
• Ergonomic Handle and Controls
• Steel Construction
• Robotic Welding
• Charger Included
• (1) Lithium Iron Battery LiFePO4 Included 24V/40Ah
• Speed Travel: 4.5 mph empty ; 4.2 mph loaded
• Lifting Speed: 1.1 ips empty; .8 ips loaded
• Lowering Speed: Manual 1.5 ips empty; 1.5 ips loaded
• Drive Wheels: 9.84″ x 2.95″ polyurethane
• Load Wheels: (2) 3.15″ x 3.35″ polyurethane
• Hydraulics Lifting Motor: 24V 800 Watt lifting motor with hardened chrome moly steel for durability.
• Drive Motor: 24V 3000 Watt drive motor for efficiency and high torque.
Specifications:
| Model | EP15SLI | |
| Drive type | Electric | |
| Manner of operation | Walkie | |
| Load Capacity | Q (LBS) | 3300 |
| Load Centre | c (Inch) | 23.6 |
| Distance between fork backrest and front wheel | x (Inch) | 39.92 |
| Wheel Base | y (Inch) | 51.69 |
| Tire material | PU | |
| Driving wheel size | Φ×w(Inch) | Φ8.27×2.76 |
| Bearing wheel size | Φ×w(Inch) | Φ3.15×3.35 |
| Qty of wheel，Front/Rear（x=driving wheel） | 1x/2 | |
| Tread | b11 (Inch) | 21.06 |
| Lifting Height | h3 (Inch) | 7.87 |
| The height of handle in the operation position | h14 (Inch) | 29.13/45.67 |
| Lowered fork height | h13 (Inch) | 3.35 |
| Overall Length | l1 (Inch) | 65.86 |
| Body Length | l2 (Inch) | 17.83 |
| Overall Width | b1/ b2 (Inch) | 26.97 |
| Fork Size | s/e/l (Inch) | 1.97/5.91/48.03 |
| Fork Width | b5 (Inch) | 26.97 |
| Min.Ground clearance | m2 (Inch) | 1.38 |
| Aisle width for pallets 39.37*47.24 crossways | Ast (Inch) | 73.78 |
| Aisle width for pallets 31.5*47.24 lengthways | Ast (Inch) | 75.75 |
| Turing Radius | Wa (Inch) | 57.8 |
| Driving Speed，load/unload | (km/h) | 4.2/4.5 |
| Maximum gradeability load/unload | (%) | 5/10 |
| Brake Type | Electromagnetic brake | |
| Drive Motor | (kW) | 0.75 |
| Lift Motor | (kW) | 0.8 |
| Lithium LiFePO4 Battery voltage rate capacity | (V/Ah) | 24/30 |
| Battery Weight（±5%） | LBS | 22.4 |
| Type of drive control | DC | |
| Noise level | (dB(A)) | ≤70 |
| Service Weight（with battery） | LBS | 370 |
| Weight | 375 kg |
|---|
