EKKO ES100E Aerial Work Platform Lift Height 32.8′

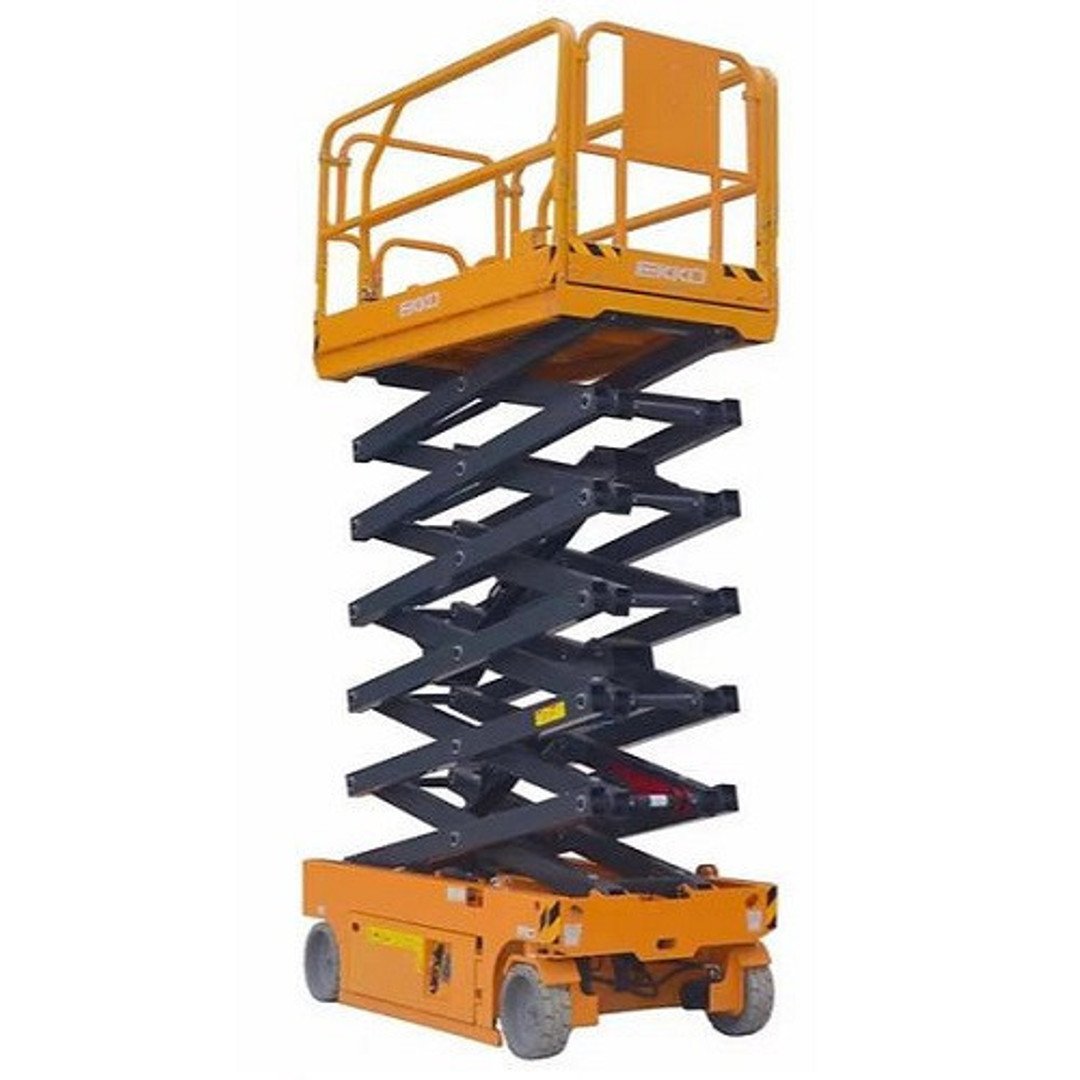

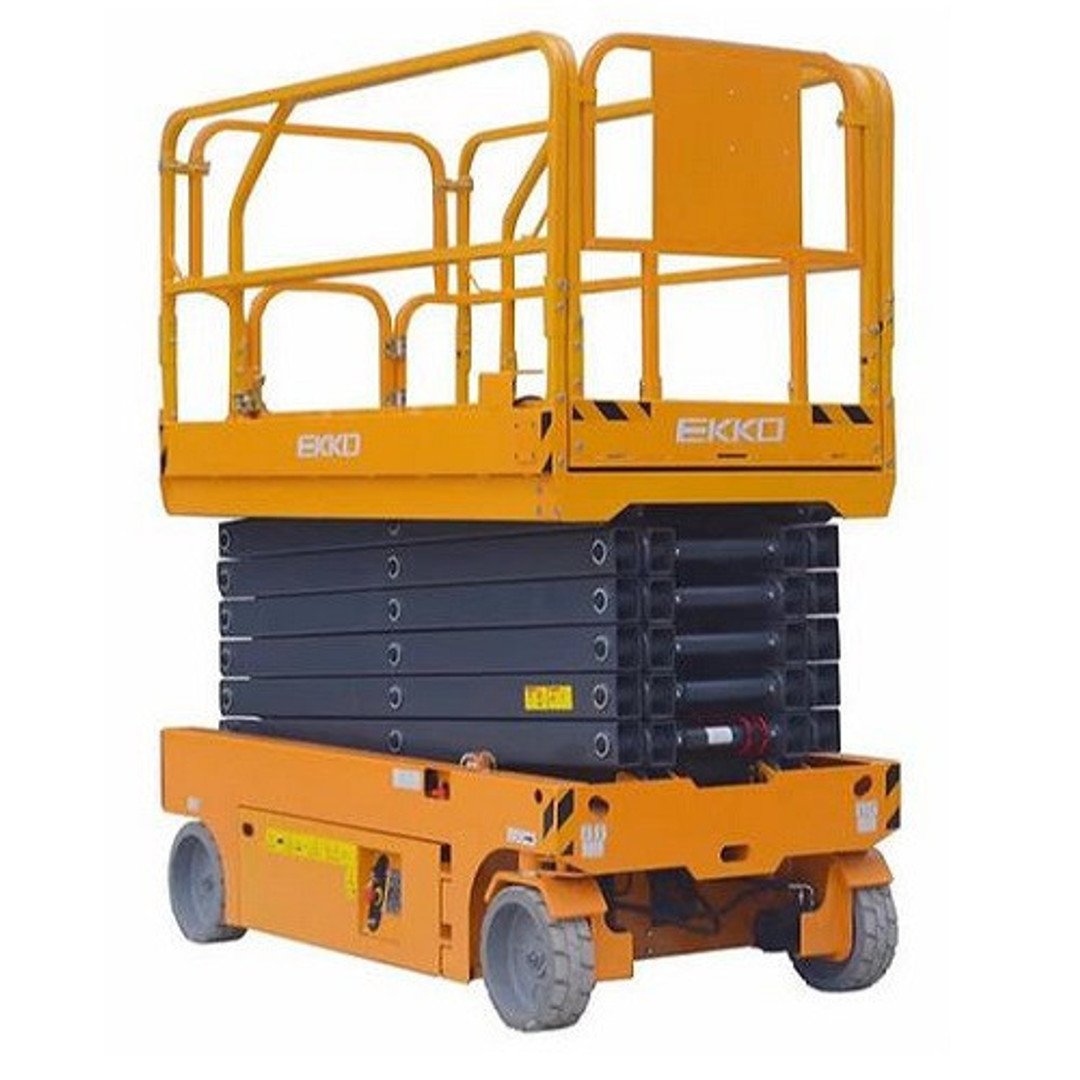

The EKKO ES100E Scissor Aerial Work Platform is a 700 lb capacity compact platform with four wheels and Curtis controller which allows you to make lifting, transporting loads, and moving products easily and safely and the ES100E also complies with GB25849 and EN280 standards.
Product Specifications:
• Load Capacity 700 lb
• Raised Height 32.8′ (394″)
• Lowered Height 96.85”
• Size: Length 89″ x Width 45″
• Steel construction
• 3 Years Limited Warranty
Specifications:
| MPN | ES100E | |
| Product Dimensions: | ||

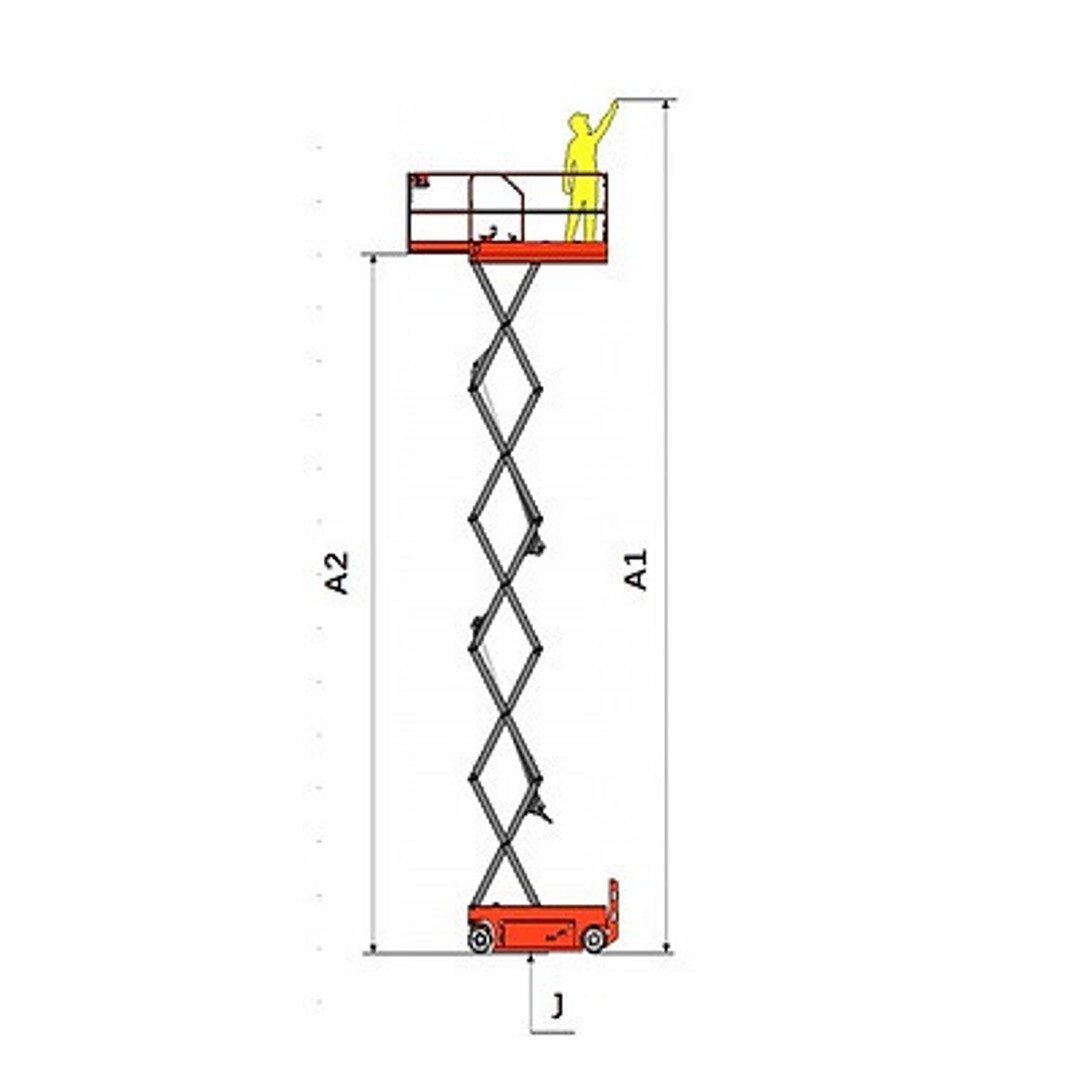

| A1 Max working height | Inch | 39′ (472”) |
| A2 Max platform height | Inch | 32.8′ (394”) |
| B Length | Inch | 94.5 |
| C Width | Inch | 45.27 |
| D Overall height (guardrail not folded) | Inch | 96.85 |
| Overall height (folding guardrail) | Inch | 72.44 |
| Platform size (length EX width FX height G) | Inch | 88.58×45.27 |
| G Guardrail height | Inch | 43.3 |
| H Platform extension size | Inch | 39.37 |
| I Ground clearance (closed state) | Inch | 3.74 |
| J Ground clearance (lifting state) | Inch | 0.78 |
| K Wheelbase | Inch | 72.83 |
| Product Performance: | ||
| Maximum number of workers (indoor/outdoor) | 2 / 1 | |
| Load rating | LBS | 700 |
| Extended platform load rating | LBS | 265 |
| Driving speed (folding state) | km/h | 0-3.2 |
| Driving speed (lifting condition) | km/h | 0~0.8 |
| Minimum Turning radius (inside) | Inch | 0 |
| Minimum turning radius (outside) | Inch | 86.61 |
| Rise/fall time | s | 52/48 |
| Maximum allowable tilting Angle (front/left/right) | ° | 3°/1.5° |
| Maximum allowable wind speed (indoor/outdoor) | m/s | 0/12.5 |
| Maximum allowable lateral force (indoor/outdoor) | N | 400/200 |
| Gradeability | % | 30 |
| Control | proportional control | |
| Actuator | Double front wheels | |
| Braking | Double rear wheels | |
| Tyre specification/type | Inch | 15*5 |
| Product Power: | ||
| Lift/drive motor | kw | 3.3/0.7×2 |
| Battery voltage/capacity | V/Ah | 6×4/225 |
| Charger input voltage | VAC | 100-240 |
| Charger output current | A | 36 |
| Control voltage | VDC | 24 |
| Hydraulic tank capacity | L | 22 |
| Total weight | lbs | 6204 |
