Original price was: $13,125.00.$10,500.00Current price is: $10,500.00.
5 in stock

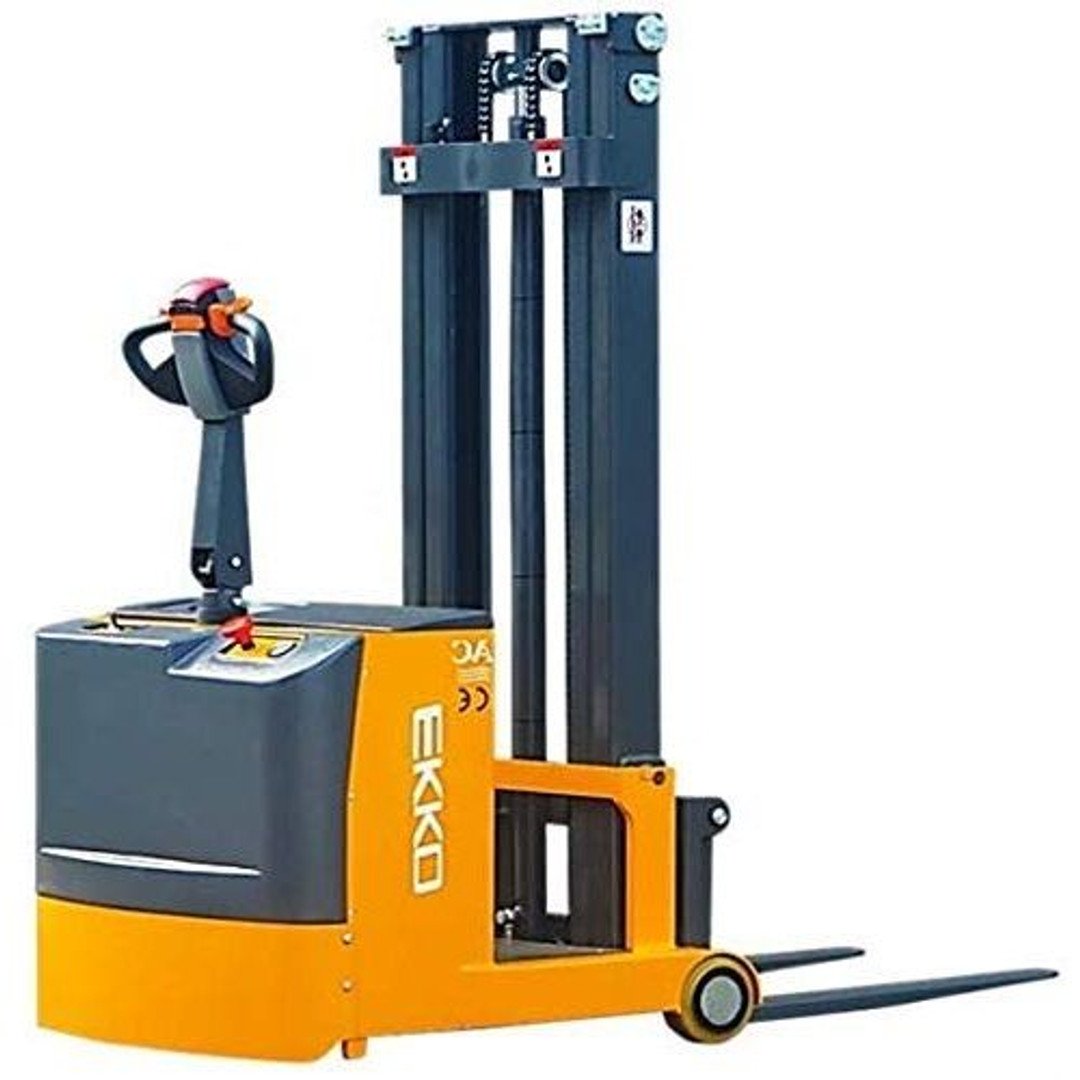

EKKO EK07S Counterbalance Walkie Stacker, 1550 lb Cap., 118″ Lift Height
EKKO EK07S Fully Powered Counterbalance Walkie Stacker 1550 lbs Capacity, features powered-drive and lifting with an outstanding 118″ high lift height and adjustable legs.
It is designed to have the adaptability of both a walkie stacker and a forklift. It is best used for loading and unloading trucks, general material handling, loading docks, stock rooms, warehousing and manufacturing floors.
It also comes with heavy duty Polyurethane drive wheels that offer excellent maneuverability. It features floor protection and multi-surfaced capacibilities ensuring great performance whether used indoors or outdoors.
The forks measure 3″ wide and are adjustable up to 25” to fit all standard size pallets and skids. Only the best and top most quality steel and components are used to ensure durable quality drives that can withstand any terrain, usage, impact and directional changes for the use of many applications.
Features:
• SKU: EK07S
• Load Capacity 1550 lbs.
• Raised Height 118″ (9.83ft)
• Adjustable Forks 8.3-25.2″
• Fork Length 42″
• Curtis Controller
• 24V AC Drive Motor
• 24V Lift Motor
• Polyurethane Wheels

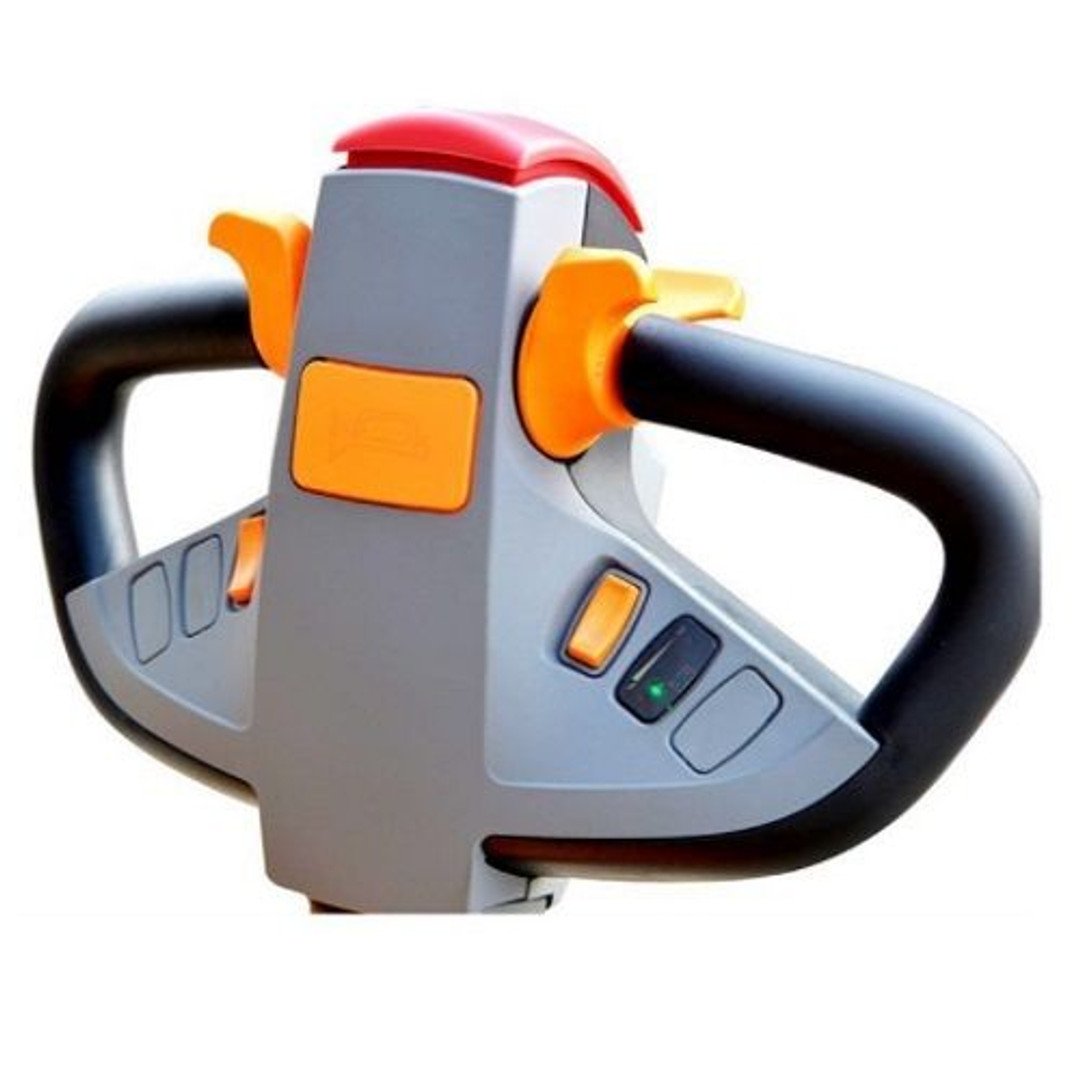

• Ergonomic Handle and Controls
• Steel Construction
• Robotic Welding
• On-Board Charger Included
• Battery Included
• 3 Years Limited Warranty

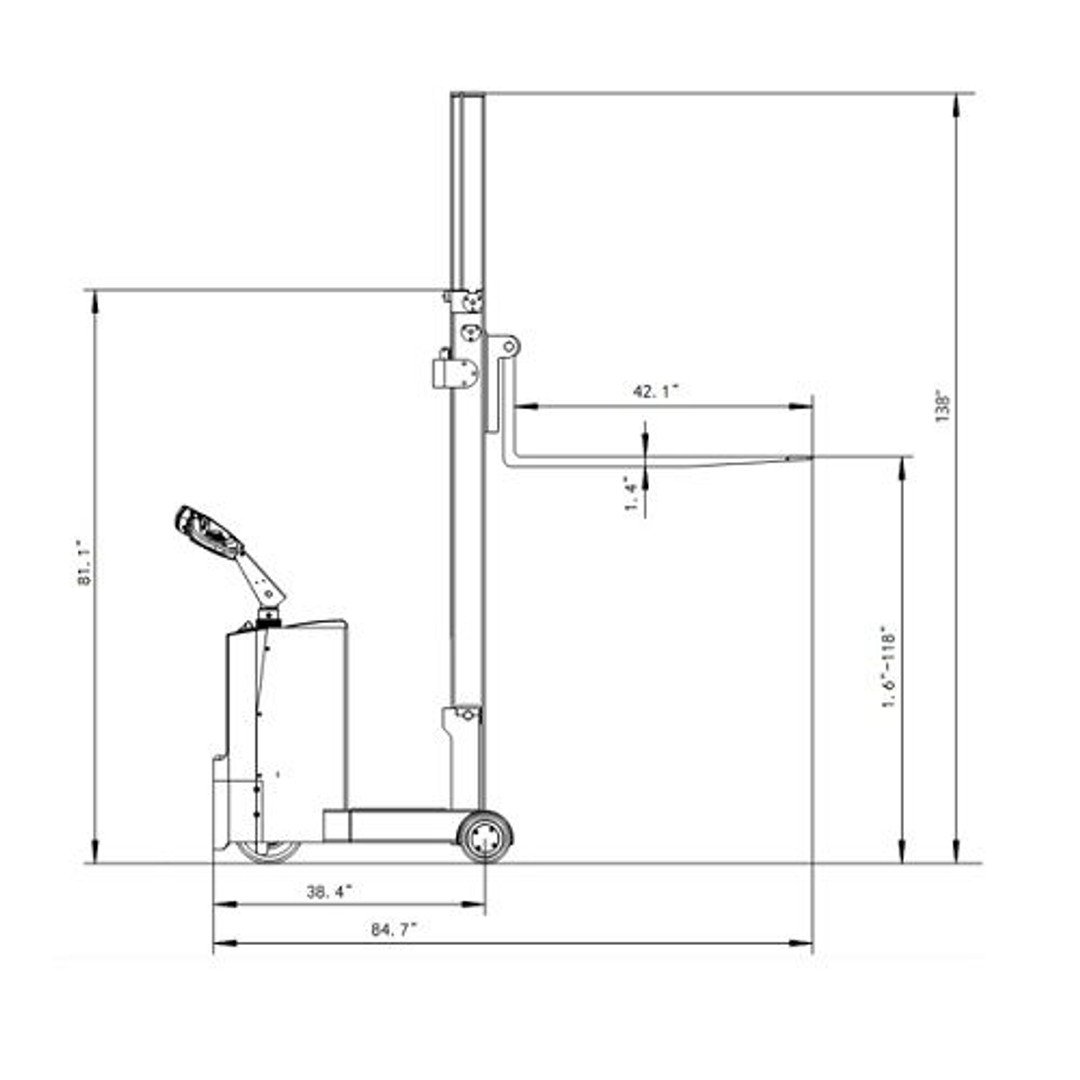

Specifications:
| Model | EK07S | |
| Lift | Electric | |
| Drive | Electric | |
| Load capacity | (lbs) | 1550 |
| Load center distance | (in) | 20 |
| Lifting height | (in) | 118 |
| Lowered mast height | (in) | 81.1 |
| Overall length | (in) | 84.7 |
| Overall width | (in) | 34.5 |
| Fork size, Thick/Width/Length | (in) | 1.4/2.9/42 |
| Fork adjust width | (in) | 8.3-25.2 |
| Turning radius | (in) | 51 |
| Internal Charger | 24V/20A | |
| Driving Motor | AC 24V/0.75kw | |
| Lifting Motor | 24V/1.5kw | |
| Battery voltage | 24V/120AH | |
| Service Weight | (lbs) | 2090 |
| Weight | 2175 kg |
|---|
