Original price was: $36,125.00.$28,900.00Current price is: $28,900.00.
2 in stock

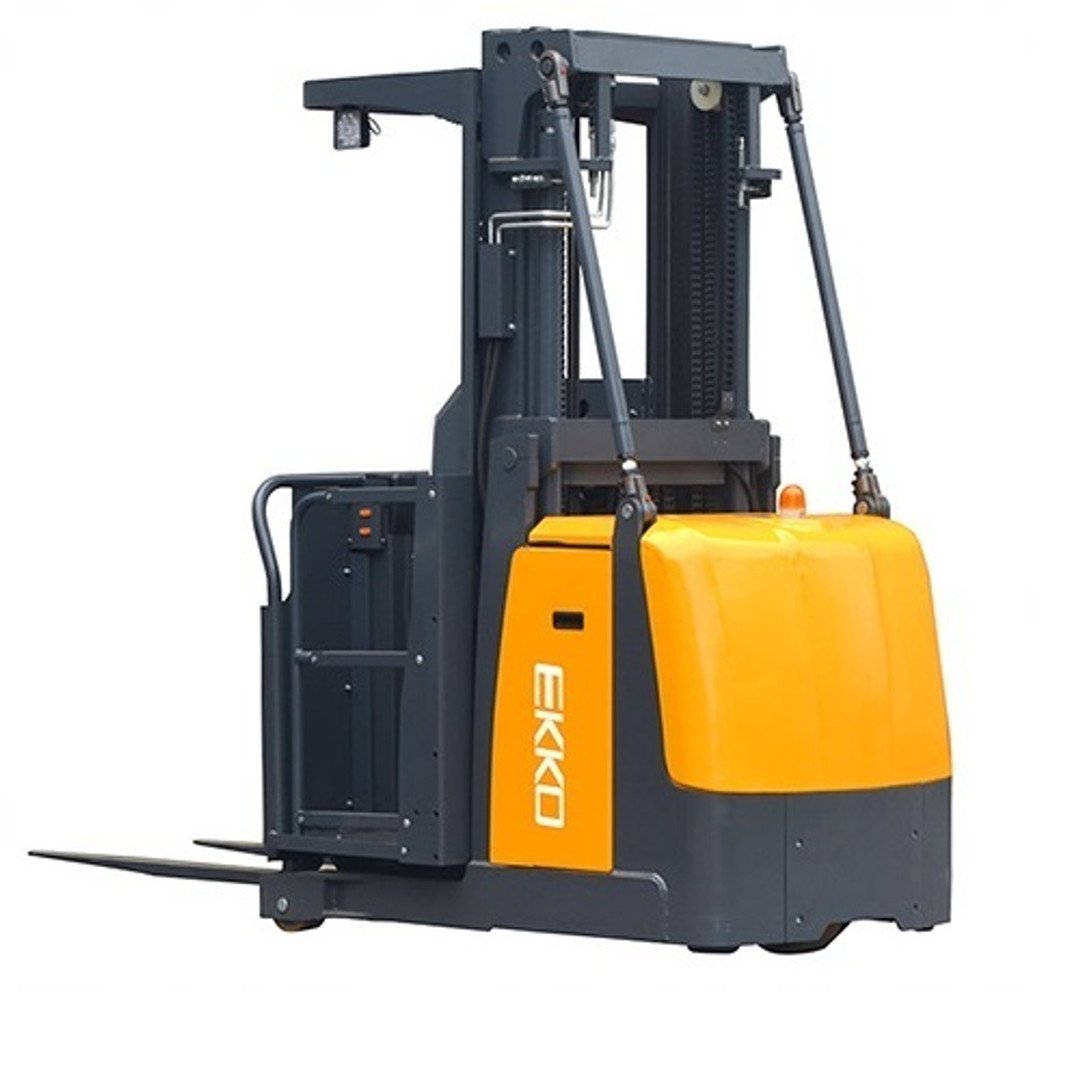

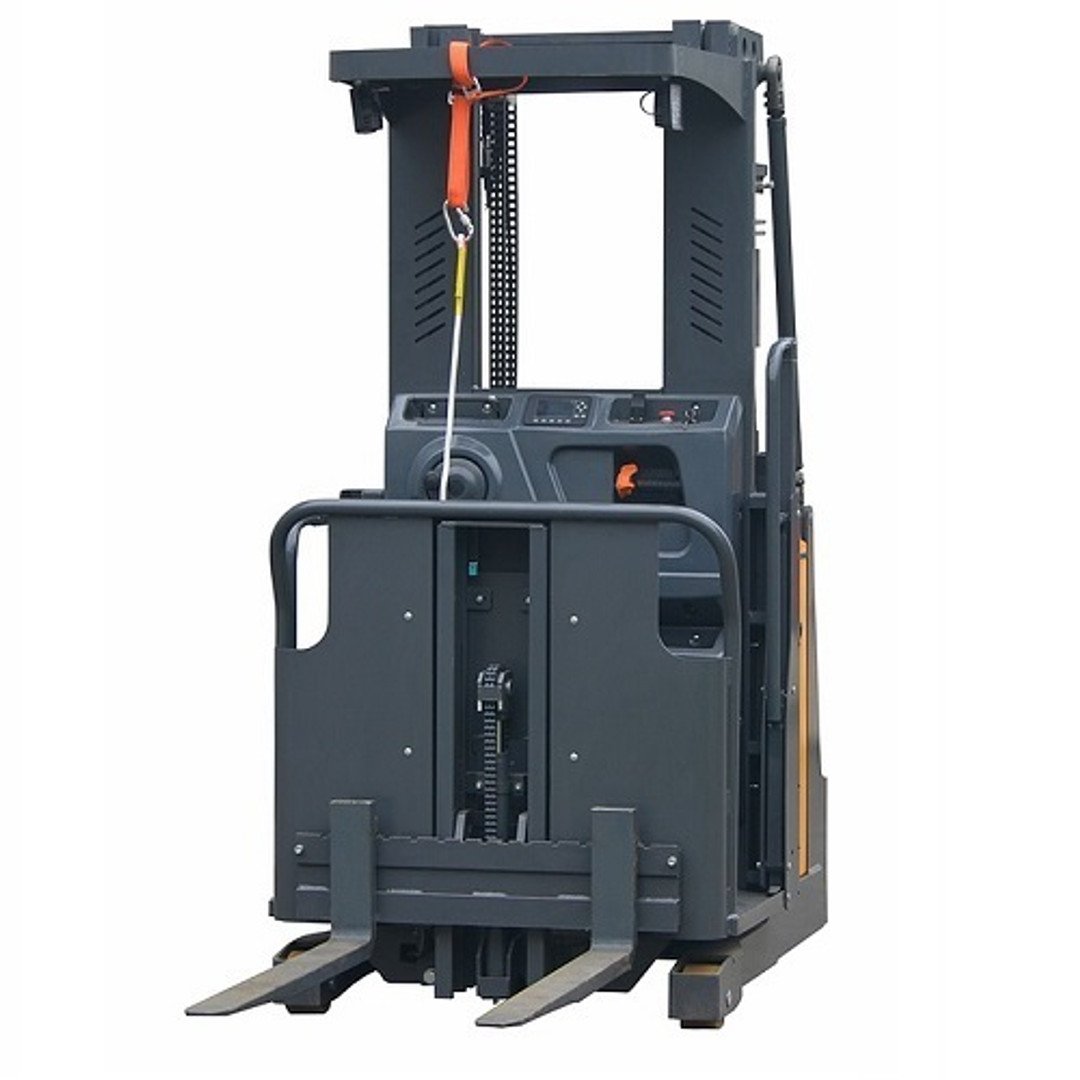

EKKO EOP70 Order Picker 2200 lb. Cap, 196″ Lift Height
The EKKO EOP70 Electric Mid-Level Order Picker is designed with the sole purpose to pick your orders from your racking and storage facility rooms, manufacturing floors and warehousing.
Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.
Features:
• SKU: EOP70
• Load Capacity 2200 lb
• Raised Height 196″ (16.33 ft.)
• Adjustable Forks
• Auxiliary Fork
• Triple Mast
• Curtis Instrument Controller
• EPS (Electronic Power Steering)
• German AC Drive Motor
• Battery 24V/280Ah
• 24V/50A
• Polyurethane Wheels
• Ergonomic Handle and Controls
• Steel Construction
• Robotic Welding
• Charger Included
• Battery Included
• 3 Years Limited Warranty
Specifications:
| Model | EOP70 | |
| Power unit | Electric | |
| Operation | Stand on | |
| Rated loading capacity | Q (lbs) | 2200 |
| Load centre | c (Inch) | 19.68 |
| Between fork backrest & front wheel | x (Inch) | 7.56 |
| Wheelbase | y (Inch) | 53.46 |
| Service weight with battery | lbs | 6600 |
| Wheels type | PU | |
| Driving wheel size | Φ×w(Inch) | Φ9.84×5 |
| Bearing wheel size | Φ×w(Inch) | Φ5.9×3.23 |
| Wheels, number front/rear (x = driven) | 1，/2 | |
| Track width | b11 (Inch) | 37.8 |
| Lowered mast height | h1 (Inch) | 93.11 |
| Lifting height | h3 (Inch) | 196″ |
| Extended mast height | h4 (Inch) | 285 |
| Height of overhead guard(cabin) | h6 (Inch) | 89.48 |
| height of seat/stand-on platform | h7 (Inch) | 10.67 |
| Additional lift height | h9 (Inch) | 30.71 |
| total lift height | h10 (Inch) | 227 |
| Platform lifting height | h12 (Inch) | 206.873 |
| Lowered fork height | h13 (Inch) | 1.97 |
| Picking height | h15 Inch) | 258.01 |
| Overall length | l1 (Inch) | 111.41 |
| Body Length | l2 (Inch) | 69.29 |
| Overall width | b1/ b2 (Inch) | 39.37/145.28 |
| Fork Size | s/e/l (Inch) | 1.37/3.93/42.13 |
| Width of fork fixing frame | b3 (Inch) | 35.83 |
| outside fork width | b5 (Inch) | 34.33 |
| Min.Ground clearance | m2 (Inch) | 1.97 |
| Aisle width for pallets 39.37*47.24 crossways | Ast (Inch) | 122.24 |
| Aisle width for pallets 31.5*47.24 lengthways | Ast (Inch) | 126.77 |
| Turing Radius | Wa (Inch) | 61.81 |
| Travel speed,laden/unladen | (km/h) | 8 |
| Lifting speed, with/without load(cabin) | (mm/s) | n/a |
| Lifting speed, with/without load(Fork) | (mm/s) | n/a |
| Lowering speed, with/without load(cabin) | (mm/s) | n/a |
| Lowering speed, with/without load(Fork) | (mm/s) | n/a |
| Climbing ability, with/without load | (%) | 3/6 |
| Brake Type | Electromagnetic brake | |
| Drive Motor | (kW) | 3 |
| Lift Motor | (kW) | 6 |
| Battey, DIN 43531/35/36 A,B,C,no | no | |
| Battery voltage/rate capacity | (V/Ah) | 24/280 |
| Battery Weight（±5%） | (LBS) | n/a |
| Type of drive control | AC | |
| Noise level | (dB(A)) | ≤75 |
| Weight | 4800 kg |
|---|
