Original price was: $6,875.00.$5,490.00Current price is: $5,490.00.
5 in stock

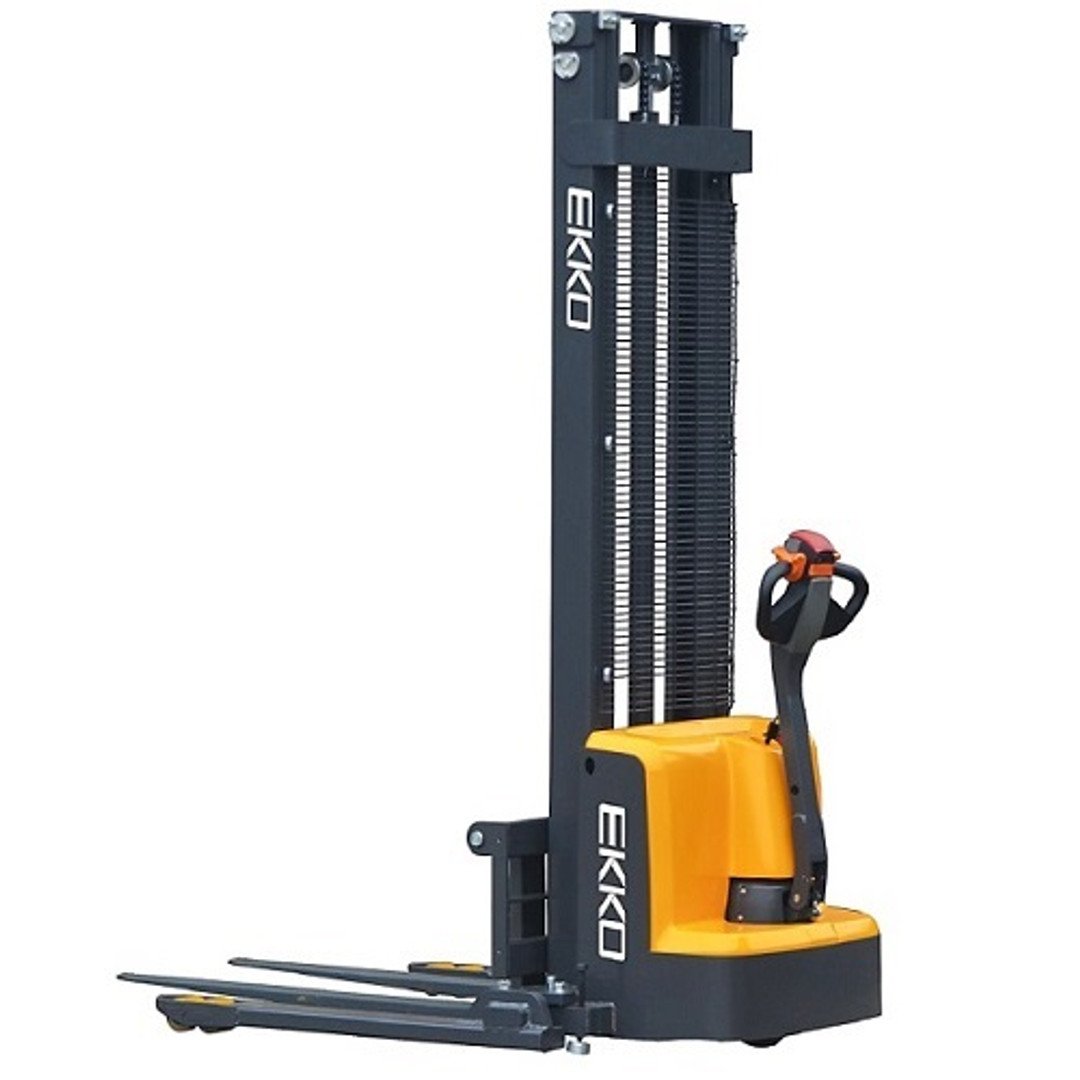

EKKO EB13E Full Powered Straddle Stacker 2800 lb Cap., 119″ Lift Height
EKKO EB13E-119 Full Powered 2800 lbs Capacity Straddle Stacker features powered lifting, steering and driving built for heavy duty material handling of loads up to 2,800 lbs capable of lifting them at heights reaching up to 119” off the ground. It comes with adjustable forks paired with adjustable outrigger legs making it extremely versatile and flexible and ensures your loads stay safe and secure along your trips.
The Ekko Power Drive and Lift Stacker 119″ Lift 2,800lb Capacity also offers you a telescoping mast to allow different load positioning to cater various material handling needs. It is engineered and designed to do tasks that forklifts, reach trucks and walkie stackers can do in a single product.
It is made out of reinforced and durable steel with robotic welding offering maximum durability, resilience and strength for heavy duty and ragged industrial applications under harsh working conditions. The Stacker only consists of quality drives and components guaranteeing everlasting performance and efficiency despite constant usage.
The Electric Stacker also features a Curtis Instrument Controller ergonomically designed to allow you to operate with just a push of a button. It comes included with a 12V/100 Ah batteries which provide long-lasting power to the Stacker ensuring that you get to finish a whole day’s worth of work with intermittent usage.
Features:
• SKU: EB13E
• Load Capacity 2800 lb
• Raised Height 119”
• Adjustable Forks 8.3-33.5“
• Adjustable Legs 45.7-59.1”
• Fork Length 45.3“
• Curtis Instrument Controller
• 24V Center Drive Motor
• 24V Lift Motor
• Battery 2*12V/100Ah
• Polyurethane Wheels
• Ergonomic Handle and Controls
• Steel Construction
• Robotic Welding
• 3 Year Limited Warranty
Specifications:
| Model | EB13E | |
| Load capacity | (lbs) | 2800 |
| The max. lifting height | (in) | 119” |
| Load center distance | (in) | 24 |
| Fork length | (in) | 45.3 |
| Single fork width | (in) | 4 |
| Overall fork width | (in) | 8.3-33.5 |
| Lowered fork height | (in) | 2.35 |
| Fixed leg length | (in) | 36.5 |
| Adjustable legs | (in) | 45.5-59.1 |
| Turning radius | (in) | 52.6 |
| Overall length | (in) | 70 |
| Max Overall width | (in) | 61 |
| Extended mast height | (in) | 135 |
| Lowered mast height | (in) | 82 |
| Battery voltage (dimensions) | (in) | 2×12V/100AH（10/6.6/8.5） |
| Internal Charger | V/A | 24V/15A |
| Lifting Motor | V/Kw | 2.2kw. Lift speed, laden/unladen:92/136mm/s | Lowering speed, laden/unladen:112/98mm/s |
| Driving Motor | 0.75kw.Driving speed: laden/unladen:4.0/4.2km/h | |
| Service Weight | (lbs) | 1420 |
| Weight | 1420 kg |
|---|
