Description

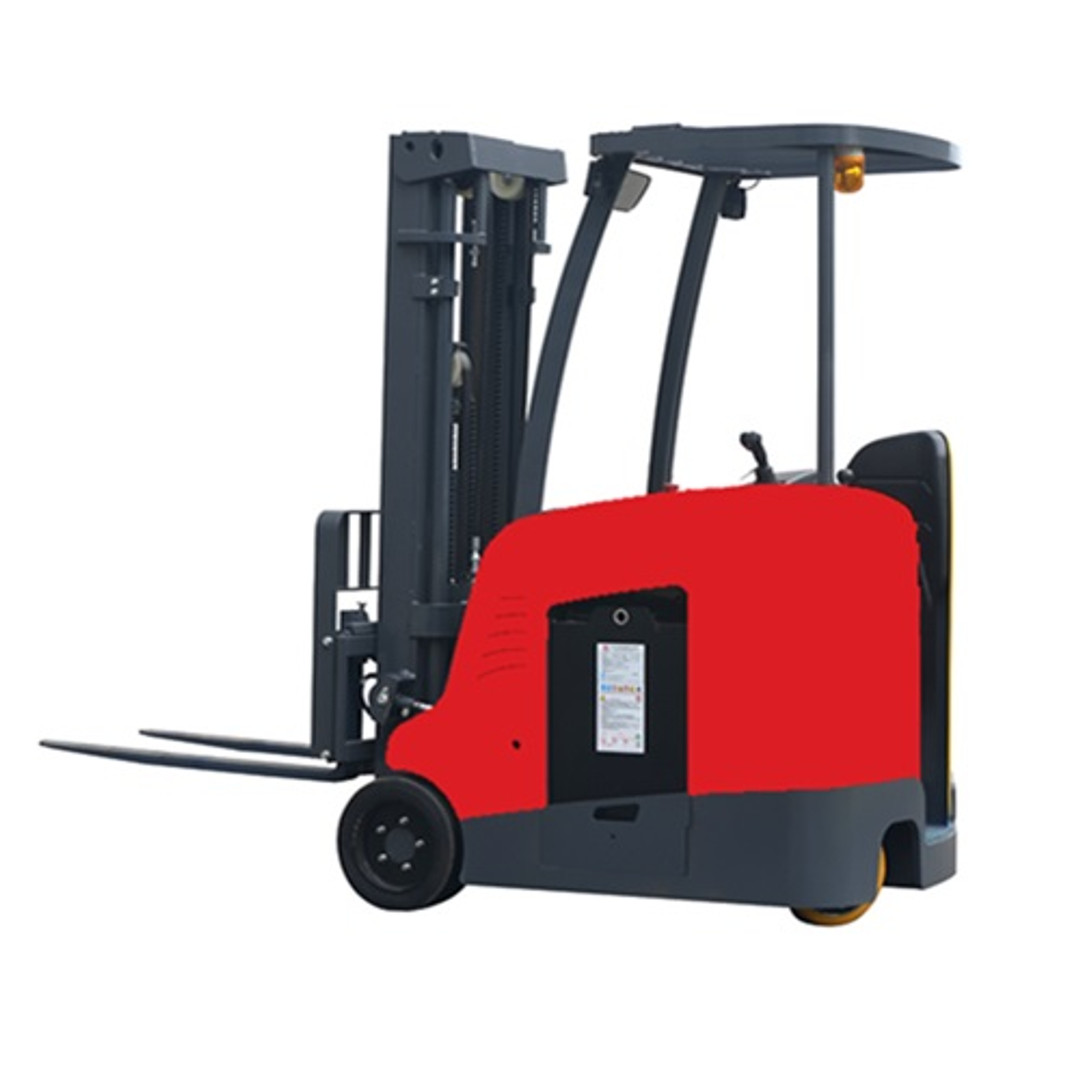

Majorlift MRSWL30 Stand-Up Electric, 4000 lb, 138” lift
The Majorlift Stand-Up Rider Forklift stands out as a leader in its class, thanks to its unique dock-to-stock capability, rendering it one of Majorlift’s most adaptable forklifts. Engineered to manage 4,000 lb. loads, it boasts enhanced flexibility and durability, allowing it to effortlessly handle greater capacities at increased heights. Its sleek design enables seamless navigation through narrow aisles, optimizing storage space within your facility. Offering improved ergonomics, reliability, and sturdiness, this forklift also reduces service intervals. Versatile and dependable, the Majorlift Stand-Up Rider is always prepared to tackle your workload head-on.
Features:
- Load Capacity 4000 lb
- Raised Height 189 – 216″
- Side Shifting Forks
- Adjustable Forks 9.4-35.6″
- Fork Length 45.3“
- Hydraulic Steering
- Curtis Instrument Controller
- German AC Drive Motor
- Battery 48V/420Ah (included)
- Solid Cushion Load Tires
- Polyurethane Drive Tires
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger 48V/65A 480V
- 3 Year Limited Warranty
Specifications:
| Model | M40ESR | M40ESRL | |
| Power unit | Electric | Electric | |
| Operation Type | Rider | Rider | |
| Loading capacity | lb (kg) | 4000 (1800) | 4000 (1800) |
| Load center | in (mm) | 24 (600) | 24 (600) |
| Axle centre to fork face | in (mm) | 11.5 (292) | 11.5 (292) |
| Wheelbase | in (mm) | 48.8 (1240) | 48.8 (1240) |
| Service weight with battery | lb (kg) | 7940 (3601) | 7870 (3570) |
| Wheels type | Solid wheel | Solid wheel | |
| Driving wheel size | in (mm) | 16×7×10.5 (406x178x267) | 16×7×10.5 (406x178x267) |
| Bearing wheel size | in (mm) | 13.5×5.2 (343×132) | 13.5×5.2 (343×132) |
| Wheels, number front/rear | 1x / 2 | 1x / 2 | |
| Track width | in (mm) | 35.04 | 35.04 |
| Mast/fork carriage tilt, fwd/bwd | ° | 3° / 5° | 3° / 5° |
| Lowered mast height | in (mm) | 91 (2312) | 83 (2108) |
| Free lift height | in (mm) | 61 (1550) | 52 (1321) |
| Lift height | in (mm) | 216 (5486) | 189 (4800) |
| Extended mast height | in (mm) | 248 (6300) | 221 (5613) |
| Height of overhead guard (cabin) | in (mm) | 90.1 (2288) | 90.1 (2288) |
| Height of seat/stand-on platform | in (mm) | 9.1 (230) | 9.1 (230) |
| Overall length | in (mm) | 117.8 (2992) | 117.8 (2992) |
| Length to fork face | in (mm) | 72.5 (1840) | 72.5 (1840) |
| Overall width | in (mm) | 42.52 (1080) | 42.52 (1080) |
| Fork dimensions (s x e x l) | in (mm) | 1.6×4.7×45.3 (41x119x1148 | 1.6×4.7×45.3 (41x119x1148 |
| Width of forks | in (mm) | 36.2 (915) | 36.2 (915) |
| Ground clearance under mast | in (mm) | 2.95 (75) | 2.95 (75) |
| Min.Ground clearance | in (mm) | 3.86 (98) | 3.86 (98) |
| Aisle width requirement | Ast (FT) | 10.5 | 10.5 |
| Min.Turning radius | in (mm) | 58.5 (1485) | 58.5 (1485) |
| Travel speed,laden/unladen | m/h (km/h) | 7.5/8 (12/13) | 7.5/8 (12/13) |
| Lifting speed, with/without load | ft/m (mm/s) | 55/78 (280/400) | 55/78 (280/400) |
| Lowering speed, with/without | (mm/s) | 53/56 (270/285) | 53/56 (270/285) |
| Climbing ability, with/without | (%) | 6% / 10% | 6% / 10% |
| Service brake | Hydraulic | Hydraulic | |
| Drive motor, 60-minute rating | (kW) |
